Low pressure hose with ball joint
2nd stage hose with swivel mechanism that relieves the burden on the lower jaw.
The adoption of swivel mechanism reduces the burden on the lower jaw and it will assist you for a comfortable diving.
Spec
● Hose length: 60cm, 70cm, 90cm
● Hose color: BK
● Male 3/8", Female 9/16"
● For low pressure
Features
Technology in pursuit of comfort.
 |

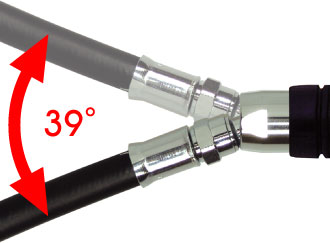

Adoption of fluorine resin for the swivel ball insulator bracket has achieved extremely smooth movement even when the air-pressure is applied. This structure enables to replace only the hose section when the hose becomes deteriorated. Further more, it has achieved a wide swing angle of 39 degree by the adoption of high-strength material with the optimized design. |
 |

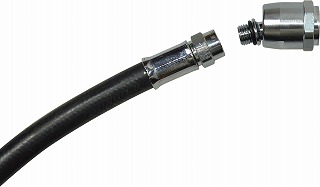

In addition, it adopts a new structure that the hose section and the ball joint portion can be separated by 3/8 inch screw. |
The shape of hose mounting screw of the 2nd stage that can be used.
The hose mounting screw of the 2nd stage is limited to those type on which an O-ring can be attached at the root portion as shown the picture below.
Hose mounting is possible with the mounting screws shown in picture below.
Please note that hose mounting is not possible to mounting screws shown in picture below as an O-ring can not be attached at the root portion of the screw.
